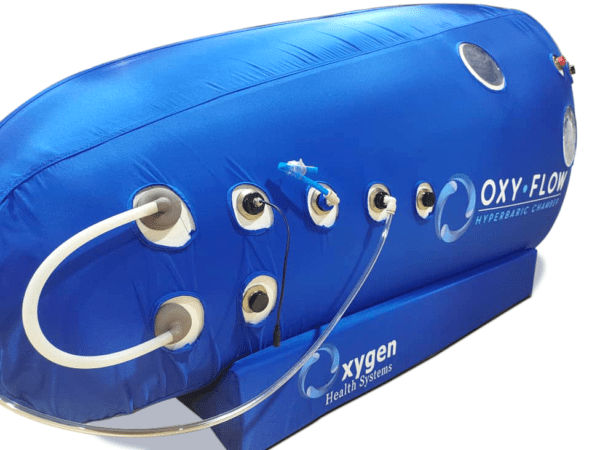

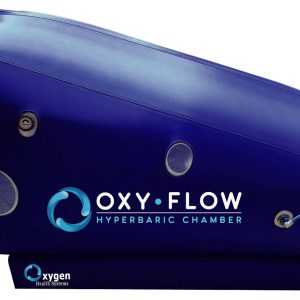

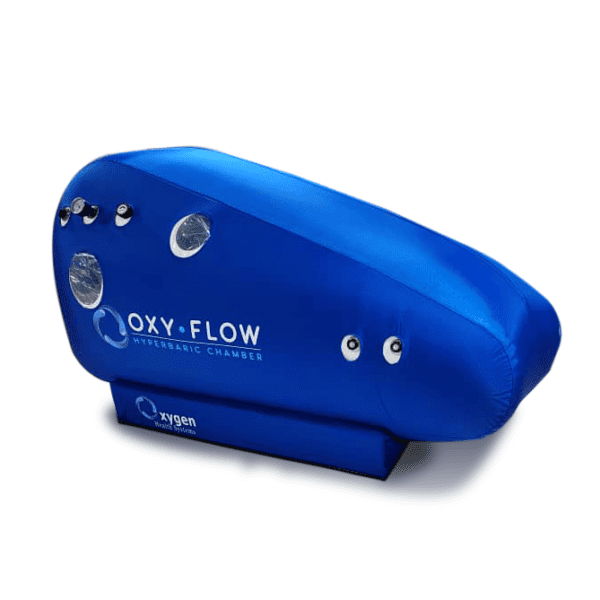

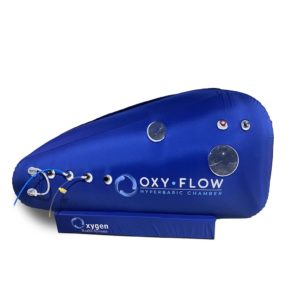

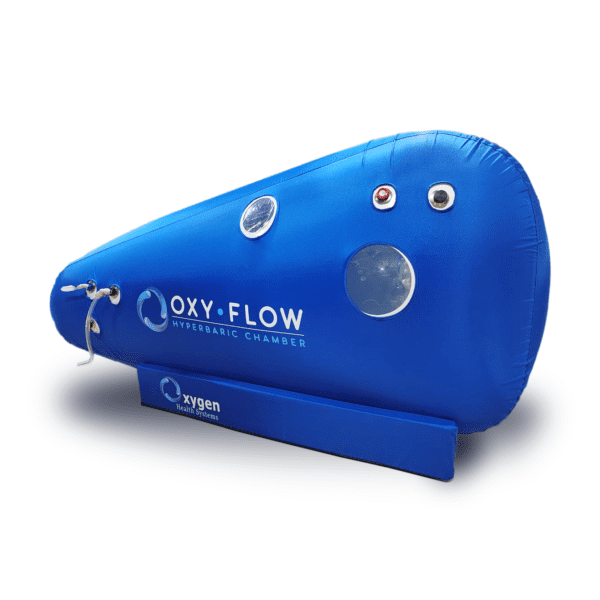

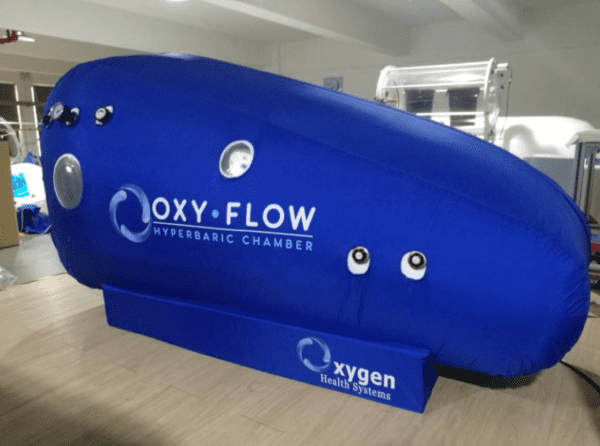

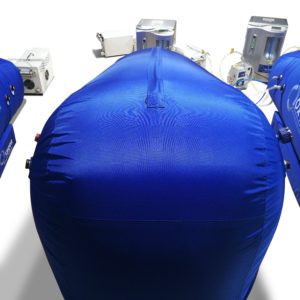

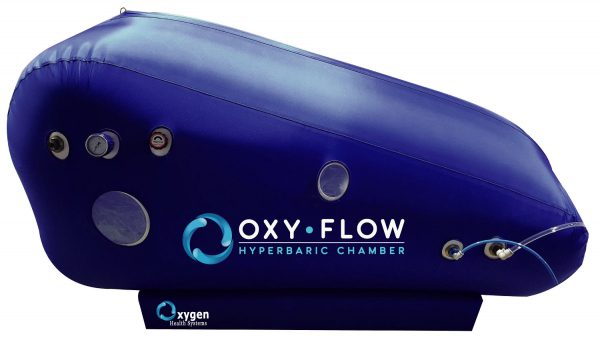

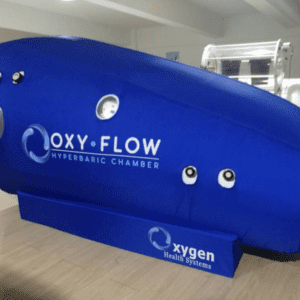

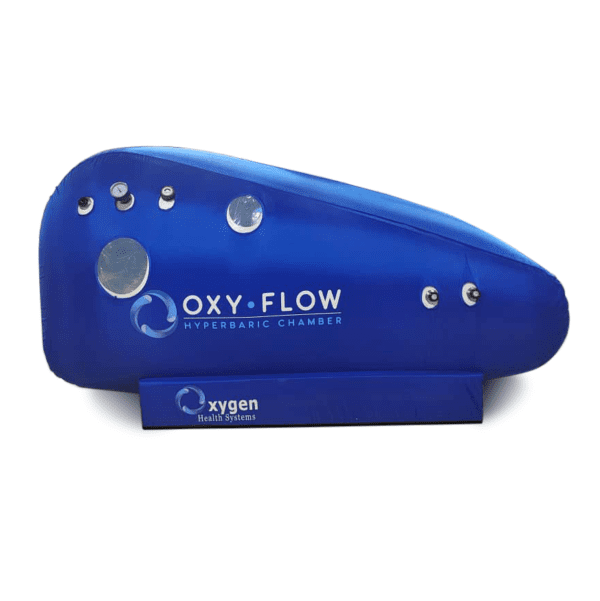

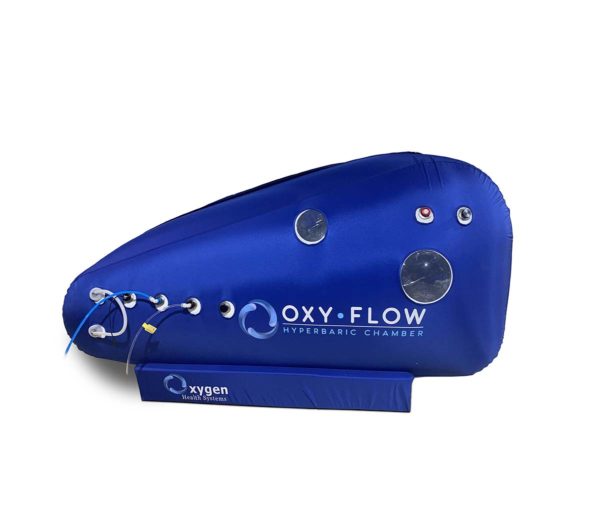

Our OXYFLOW sitting/reclining type chamber with its unique angled chamber design is a great choice for those unable to step into a top entry chamber or simply want the flexibility of going from sitting straight up to laying back in relaxation. Users enter from the front of the chamber as it zips down towards the feet and splits open in the middle to allow easy entrance. With a 44 inch heaight, 89-inch length and a 72-inch zipper opening, those of all sizes can have the comfort to stretch their legs in this chamber. This is one of our best portable hyperbaric chambers able to deliver compressed oxygen at 1.3 ATA (32 KPA) or optional 1.4 ATA 42 KPA ( 33% more pressure). This hyperbaric chamber offers an integrated and upgraded 10 LPM oxygen generator producing 95% to 97% oxygen purity for the most effective treatments. Our system has been built with many safety features in mind. For example, the emergency pressure relief button is available to speed the exit of the chamber in emergency situations, and dual pressure relief valves provide redundancy of airflow at the foot of the chamber.
The incredible versatility of our proprietary comfort chair that is included with our OXYFLOW sitting chamber allows for adjustments from lying flat to upright in fine incremental steps providing stability and balance that is unusually effective. It also has the same incremental adjustment at the head of the chair and the lower portion. No other chamber in the marketplace offers this feature.
Our hyperbaric oxygen system offers premium features that our competitors do not offer at competitive pricing. With a standard Dehumidifier to increase comfort and a 10 LPM Oxygen concentrator as a standard feature.
With Internal and External Pressure Gauges, One can safely see what pressure the chamber is operating at.
Our units are made to last 25 years or more with durable Triple and Penta heat-welded seams, certified medical-grade triple-layer durable PET polyester embodied TPU material( Not to be confused with polyurethane) and a proprietary 2 sided zipper system, and an outer cover zipper that makes our Hyperbaric chamber unit stand above our competition. Our units have multiple certifications as listed below.
ISO 9001 sets out the criteria for a quality management system.
ISO 14001 sets out the criteria for an environmental management system.
ISO 13485 specifies requirements for a quality management system where an organization needs to demonstrate its ability to provide medical devices and related services that consistently meet customer and applicable regulatory requirements.
Be careful when choosing a hyperbaric chamber system. When considering this type of purchase for your health, you want to choose a product from a company the will provide you with the best quality and service in addition to a product that will provide effective treatments for years to come. All chambers are ready to ship.
Call our hotline for any questions! 630-451-8821 to speak to one of our oxygen specialists and learn more about our superior hyperbaric chamber systems.
HYPERBARIC OXYGEN CHAMBER FEATURES:
|OXYGEN HEALTH SYSTEMS OXYFLOW HYPERBARIC OXYGEN SITTING TYPE CHAMBER SPECIFICATION
89″L x 41.7″H x 27.5″W
93″L x 44.8″H x 42. 5″W (Center)
★ 1.3 ATA | 4.3 PSI | 32 KPA ★ High strength double-sided 44 oz medical grade TPU/ polyester material. ★ Certified Non-Toxic/Eco-Friendly ★ Portable/Foldable ★ Safe/One-Person operation ★ Zipper Length: 72 Inch ★ 4 Windows – 2 on Left and Right sides ★ Warranty 3 Years
|Fully Adjustable Lounge Chair
|Chair when 90° fold
29″ L x 19.70″ W x 28″ HChair spread length
|FOLDABLE CHAIR FEATURE
★ Our lounge chair can be adjusted from lying flat to 90 degrees straight up in fine increments. ★ Self Supporting Chair can support up to 150KG or 330 lbs without rear support. ★ That above 150KG may require a wedge pillow behind the chair for additional support. (Video Link)
|Devilbiss 10 Oxygen Concentrator
(See Spec Sheet)(Click to View the Devilbiss 10 Service Manual)
|13″ L x 12″ W x 24.5″ H
|OXYGEN CONCENTRATOR FEATURE
★ FDA Approved ★ PSA molecular sieve high technology. ★ Non-Toxic and ECO-Friendly. ★ 18 to 20 PSIG @ 95% Purity. ★ Continuous flow oxygen production, no oxygen tank required. ★ 630 Watt (10 Amps) Heavy-duty motor.
|15″ L x 9.5″ W x 10.2″ H
★ Oil-free ★ Non-toxic/ECO-Friendly ★ Quiets ★ Super adsorption activated filters ★ Double inlet and outlet filters ★
|9″ L x 5″ W x 11″ H
★ Reduces humidity level to keep you comfortable.
|Total system Watts
|All Equipment Voltage
|110v-120v ( 220V available upon request)
|CE, ISO9001, ISO14001, ISO13485
|Pressure 1.4 ATA
|PRESSURE 1.4 ATA FEATURE
★ 1.4 ATA | 5.8 PSI | 42 KPA
|13″W x 16″L x 22″H
★ Temp. Range（℃）: -5~30 (Water)
RELIABLE PATENTED ZIPPER SYSTEM
We use the industry’s first “highly sealed triple reinforced fasteners.” Sealed with silicone and 2 layer zipper to completely sealed and prevent leakage for years to come.
INTERNAL AND EXTERNAL PRESSURE GAUGE
Internal and External high-precision pressure gauges, allowing you to control pressure changes at any time.
Allows for accurate observation of pressure inside and outside the chamber.
Emergency Pressure Relief Valve
THE SYSTEM INCLUDES THE FOLLOWING ITEMS:
|Chamber Capsule Vertical Sitting
|Quiet Oil Free Air Compressor
|Oxygen Concentrator 10 liter/min
|Mattress and proprietary Adjustable Reclining Chair
|Metal Frame WITH QUICK CONNECTS
|Muffler designed to reduce noise in the chamber
|2 Oxygen Masks, 2 Headsets, and 2 Nasal Cannulas included to breathe oxygen directly.
|Walkie-Talkie Communications System
|Finger Pulse Oximeter to measure blood oxygen saturation
KEY FEATURES OF OXYGEN HEALTH SYSTEMS CHAMBERS
Portable, Simple to Install, Easy to Use
Durable Internal Frame for Greater Chamber Structure Support
Environment-Friendly Materials, NON-Glue, NON-Toxic
Memory Foam Mattress Made for Greater Comfort
Quality Dual Zipper System (YKK) for Durability and Strength
Internal/External Dual Pressure Display Allowing Pressure Reading Anytime from Inside and Outside
Five Carbon Filters Designed to Remove Fine Contaminants and Provide Clean Air
Internally/Externally Operable Pressure Release Valve for Self-Sustaining Operation
Quiet High-Volume Air Compressor Designed to Expel CO2
Dual-Action Air Conditioner for Internal Cooling/Removal of Humidity
Included Ionization Technology to Elevate Negative Ions Inside Chamber
Multiple Spare Ports For Future Expansion
Redundant Pressure Regulating Valves for Added Safety
Super High Pressure 20 PSI, 10 LPM Oxygen Concentrator with 95% Purity
Operational Videos and Training
Higher pressure models available. Higher pressure translates to greater compression of oxygen molecules
Available Models with Advanced Door Design for Easy Entry/Exit for Mobility-Challenged Users
O2 Concentrator at NO Extra Charge
Default Dehudifier at NO Extra Charge Included with Chamber Without A/C
Midwest-Based US Company with all US-Based Customer/Technical Support
How do oxygen molecules get 400% deeper into your tissues as they do with Hyperbaric Oxygen Therapy?
They actually shrink under this pressure and can squeeze through constricted blood vessels, inflamed tissue, cross the blood-brain barrier, enter lymph nodes, cerebrospinal fluid, and musculoskeletal system. Essentially, oxygen is delivered into all of our tissues, including areas where circulation is diminished, which is an extremely important component as oxygen is essential for the function and maintenance of every cell in our body, regardless of whether it’s an organ, muscle, or bone.
This is analogous to what you see in a can of soda as the CO2 particles are under pressure, and therefore decrease their sizes enough that they dissolve into the liquid. When you pop the can open, the pressure is released, the CO2 particles increase in size and you see the fizz. This is exactly what happens to your oxygen molecules as they decrease in size under pressure and dissolve into the blood plasma. This exponentially increases oxygen delivery through the body and makes it possible for oxygen to enter inflamed tissue or tissue that is starving for oxygen (hypoxic) to support optimal cellular activity.
Oxygen is the final electron acceptor in the Electron Transport Chain, which is where all of the ATP is produced. This is known as aerobic respiration, or how our cells breathe. Oxygen is essential to life, but it is how it affects the function of every cell in the human body that makes it necessary for life. Without oxygen, we can’t make energy for our brain, organs, or any tissue. The more oxygen we can deliver to our tissues, the healthier, energetic and mentally well we feel. It has a very high affinity for electrons (high electronegativity), making it a good electron acceptor and perfect in its role. In summary, Oxygen allows us to make ATP, which is the energy currency of our body, thereby required by all cellular processes to function and therefore heal to support normal bodily and brain function, including organs, bones, joints, muscle, etc.
