What is Hyperbaric Oxygen Therapy (HBOT)?

Hyperbaric Oxygen Therapy delivers oxygen under pressure to increase oxygen concentration in the blood and tissues, supporting the body's natural healing process.

What is the difference between hard HBOT and mild HBOT?

Hard HBOT uses rigid chambers at higher pressures with 100% oxygen, while mild HBOT operates at lower pressures using concentrated oxygen, offering improved safety and accessibility.

Mild HBOT has no known safety risks related to fire or oxygen toxicity and is considered a safer alternative to hard HBOT.

HyperBaric Oxygen Chamber HardShell 31.5 inch Diameter 3 ATA

Hard Shell Hyperbaric Oxygen Chamber - 31.5-Inch Diameter - 2.0 ATA - Image 3

Hard Shell Hyperbaric Oxygen Chamber - 31.5-Inch Diameter - 2.0 ATA - Image 5

Hard Shell Hyperbaric Oxygen Chamber - 31.5-Inch Diameter - 2.0 ATA - Image 6

Hard Shell Hyperbaric Oxygen Chamber - 31.5-Inch Diameter - 2.0 ATA - Image 7

Hard Shell Hyperbaric Oxygen Chamber – 31.5-Inch Diameter – 2.0 ATA

$39,900.00

Hard Shell Hyperbaric Oxygen Chamber supports pressures from 1.1 to 2.0 ATA (10–100 kPa). Designed for single-patient use with an interior size of 86 inches in length and 31.5 inches in width. Built with a durable steel shell for safety and long-term use. Chamber weight is 220 kg (485 lbs) with a maximum weight limit of 250 kg (550 lbs). Integrated all-in-one system delivers 100 L/min air volume, operates at 115 VAC, and consumes 950 VA power. Installation space required is 118 inches wide and 59 inches deep. Certified to ISO standards for quality and reliability.

Categories: 2 ATA, Hyperbaric Sleeping Chambers, Hyperbaric Chamber Wound Care, Commercial Hyperbaric Chambers, Revive Hyperbaric Chambers, Small Hyperbaric Chambers, Hard Shell Hyperbaric Chambers, Monoplace Hyperbaric Chambers, Hyperbaric Chamber Bed

These statements have not been evaluated by the Food and Drug Administration. This product is not intended to diagnose, treat, cure, or prevent any disease.

Description
Additional information

#gap-1512741330 {
padding-top: 30px;
}

2.0 ATA Hard Shell Hyperbaric Chamber | 31.5 inch

A professional-grade Oxygen Chamber designed for durability, comfort, and ease of use. Experience pressures up to 2.0 ATA (100 kPa) with our advanced “All-In-One” smart control system.

#gap-593190297 {
padding-top: 20px;
}

⚡

2.0 ATA Pressure

Clinical grade 10~100 kPa

❄️

Climate Control

AC Cools to 18°C (64.4°F)

🖥️

Smart Display

Internal & External Touch

🧍

Solo Operation

No assistance required

#row-1847682859 > .col > .col-inner {
padding: 15px 15px 15px 15px;
background-color: #f9f9f9;
}

#gap-370704384 {
padding-top: 40px;
}

Advanced Control & Comfort

This system outperforms competitors that cost twice as much by integrating high-end comfort features with industrial-grade technology.

Smart System Monitoring: Automatically detects and maintains safe CO2, temperature, and humidity levels via automatic ventilation.

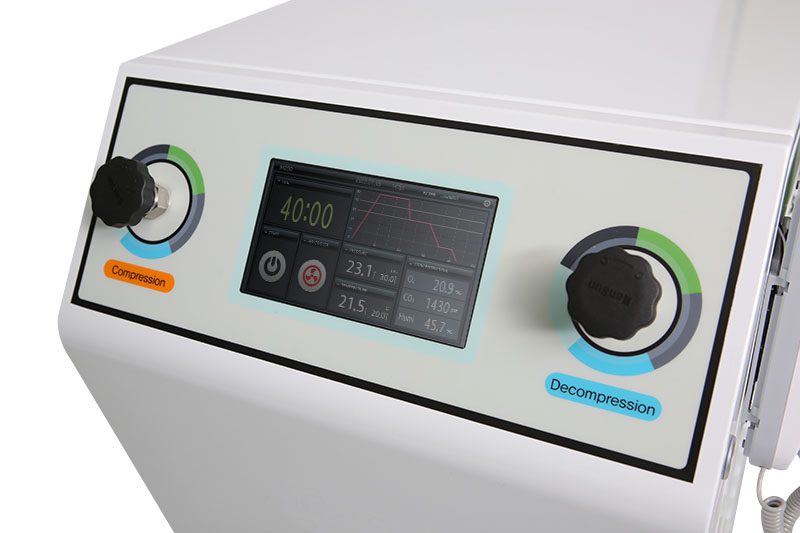

Total Customization: Control your Session Time, Pressure, and Temperature via simple touch screens located inside and outside.
Powerful Cooling: Includes an Air Conditioning system to prevent overheating, cooling down to a comfortable 18°C (64.4°F).
Real-Time Graphing: Observe treatment progress instantly on the display.
Additional Oxygen Port: Ready for expansion if higher oxygen volume is required.

Design & Accessibility

Engineered for seamless installation in homes or doctor’s offices, focusing on durability and ease of entry.

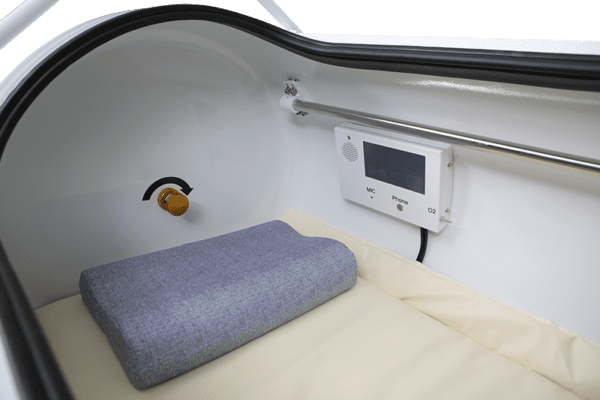

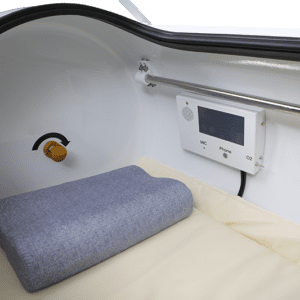

Sliding Glass Door: Provides easy entry/exit, allows ample light to reduce claustrophobia, and enables easy patient monitoring.
Solo Use Capable: Operate the chamber entirely on your own without a second person.
Fits Standard Doors: Passes through 90cm doorways easily. Handles detach to fit through tight 33.5-inch (85cm) doorways.
Interphone System: Stay in constant communication with the outside, even during a power failure.
Ground Protection: Entire chamber body is grounded to remove static electrical impulses.

#gap-1666455753 {
padding-top: 30px;
}

🛡️ Triple-Layer Safety Protocols

Safety is our #1 priority. This chamber features redundant systems to ensure a secure environment.

Software Cut-Off: Automatic pressure relief activates if pressure exceeds 110 kPa.
Mechanical Safety Valve: A certified secondary valve physically prevents internal pressure from exceeding 120 kPa.
Emergency Release: One-touch internal valve speeds up depressurization for rapid exit in emergencies.
Power Failure Auto-Stop: Automatic pressure relief and door release in case of power outages.

#gap-142312708 {
padding-top: 30px;
}

Technical Specifications

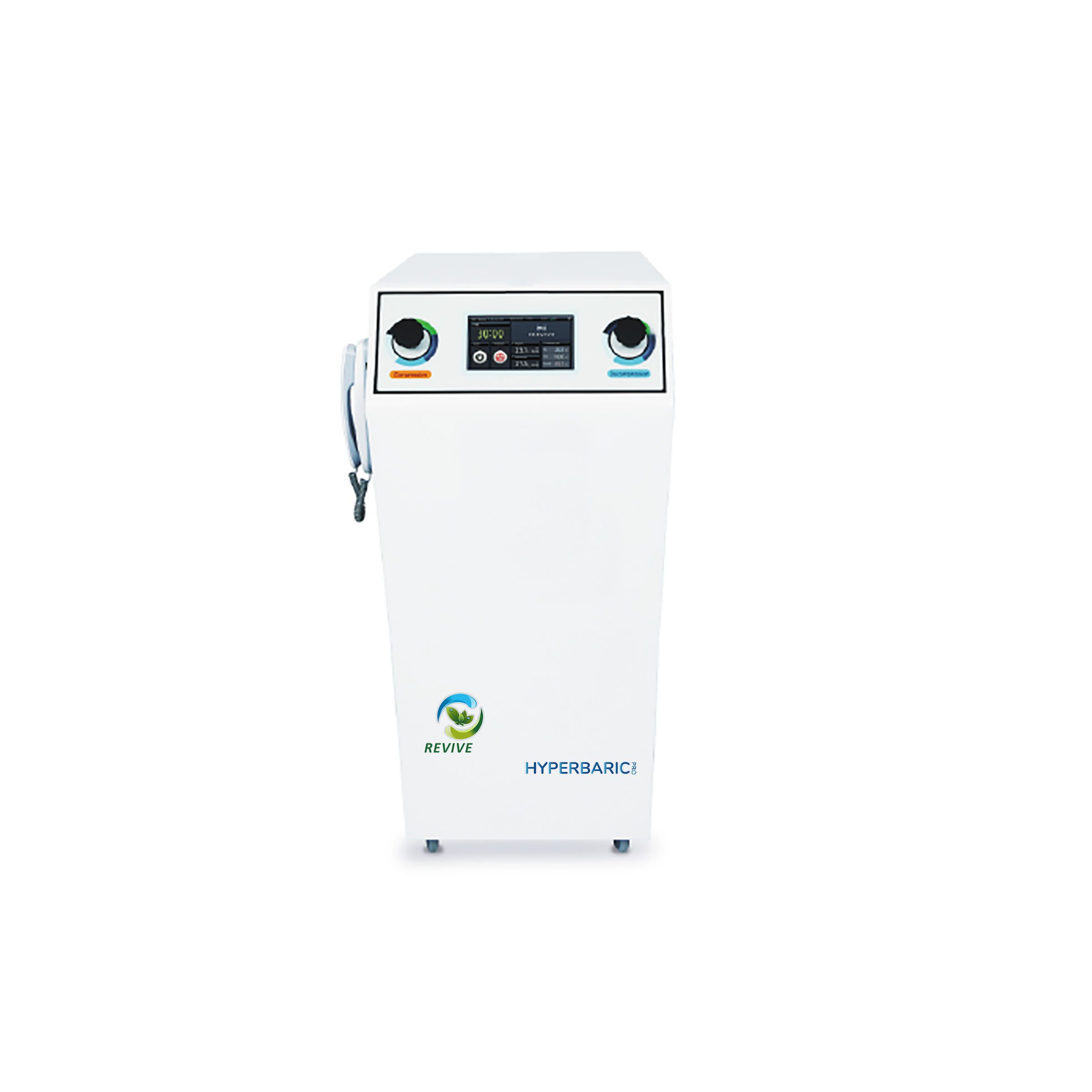

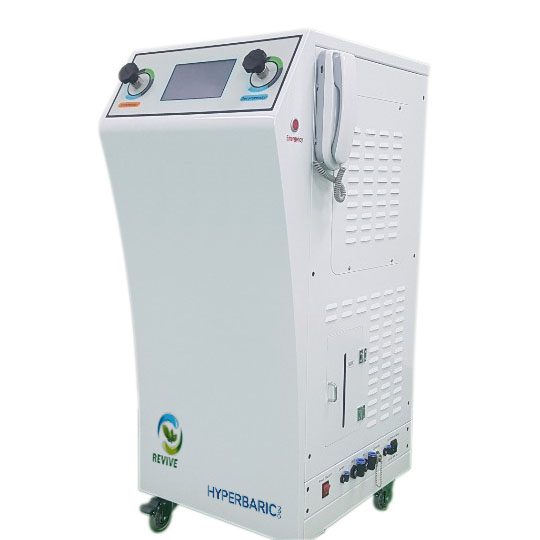

Chamber & System Unit
Pressure Range	1.1 ~ 2.0 ATA (10 ~ 100 kPa)
Chamber Dimensions	86″ (L) x 31.5″ (W) – Interior
Weight Limit	550 lbs (250 kg)
Material	High-Grade Steel (Chamber weight: 485 lbs)
System Size	17.7″ (W) x 25.3″ (D) x 43″ (H)
Power	115 VAC, 50/60 Hz (950 VA Consumption)
Air Flow Rate	Adjustable: 40L/min ~ 100L/min

Included Oxygen Concentrator (Drive Devilbiss 10L)
Output	10 LPM Continuous Flow
Purity	95% Purity @ 18-20 PSIG
Technology	PSA Molecular Sieve (FDA-compliant)
Resources	View Spec Sheet \| Service Manual
