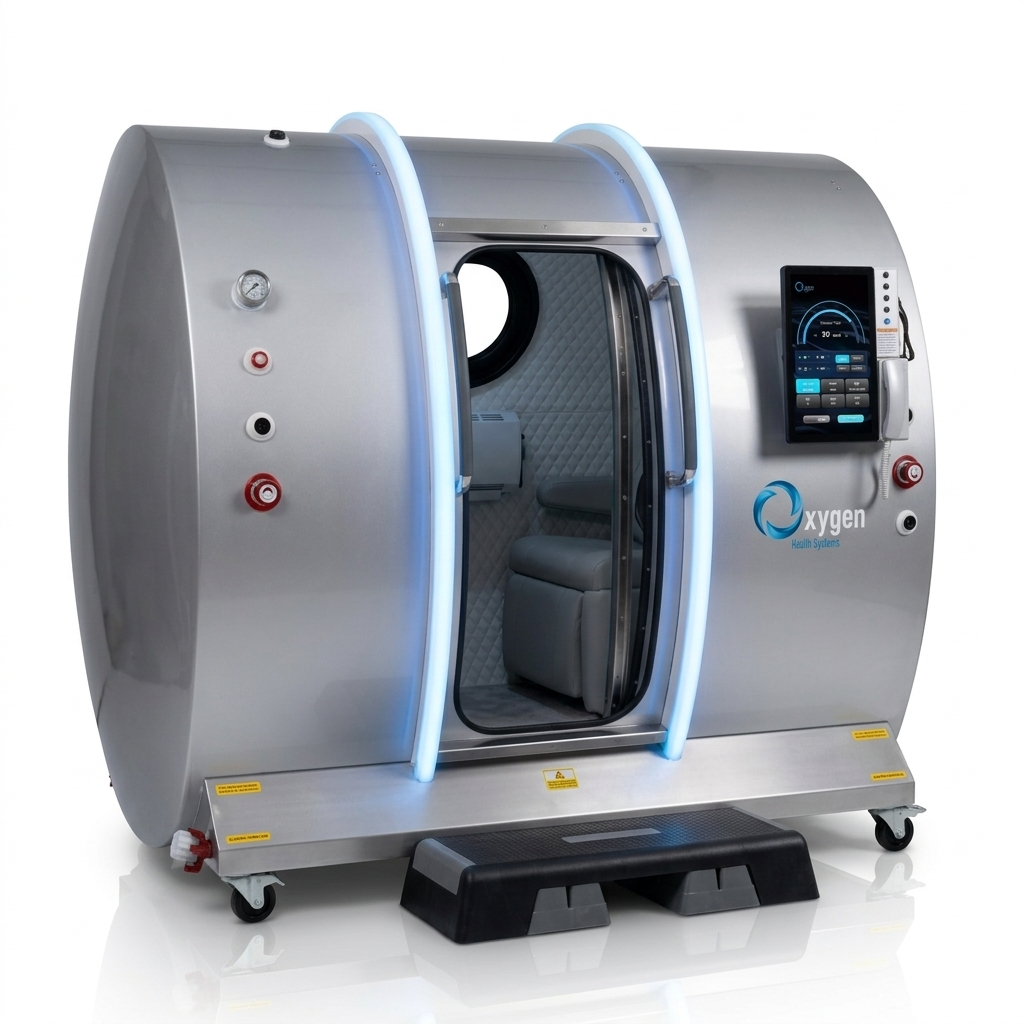

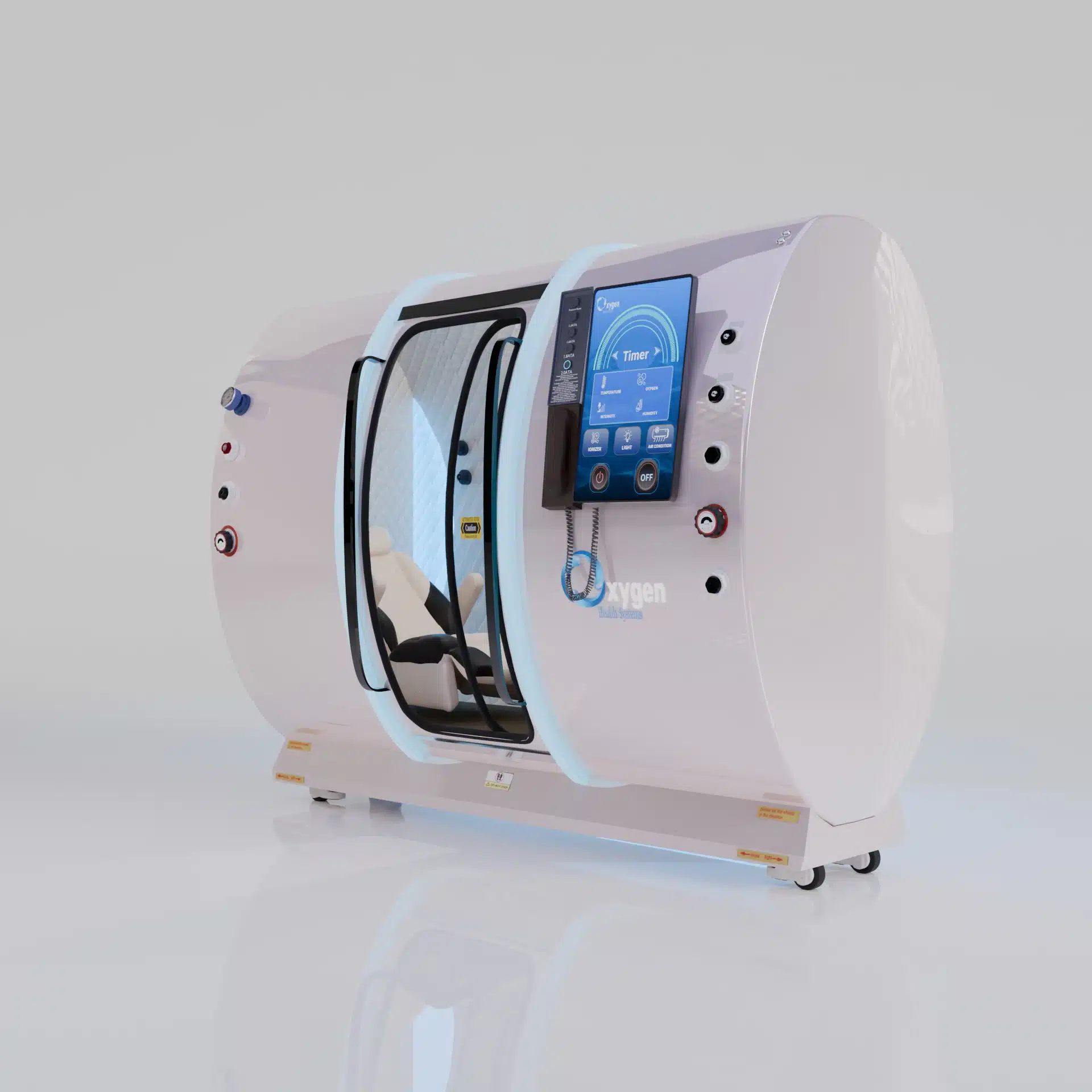

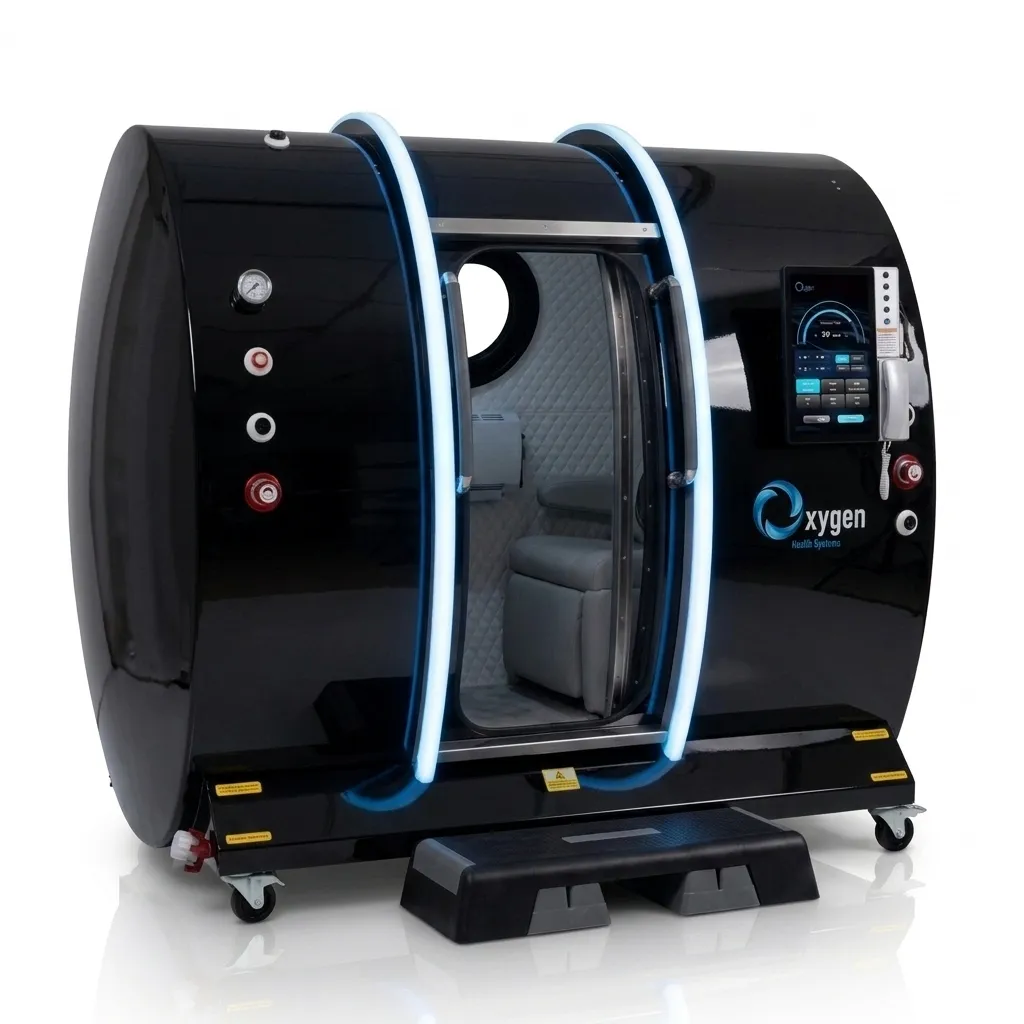

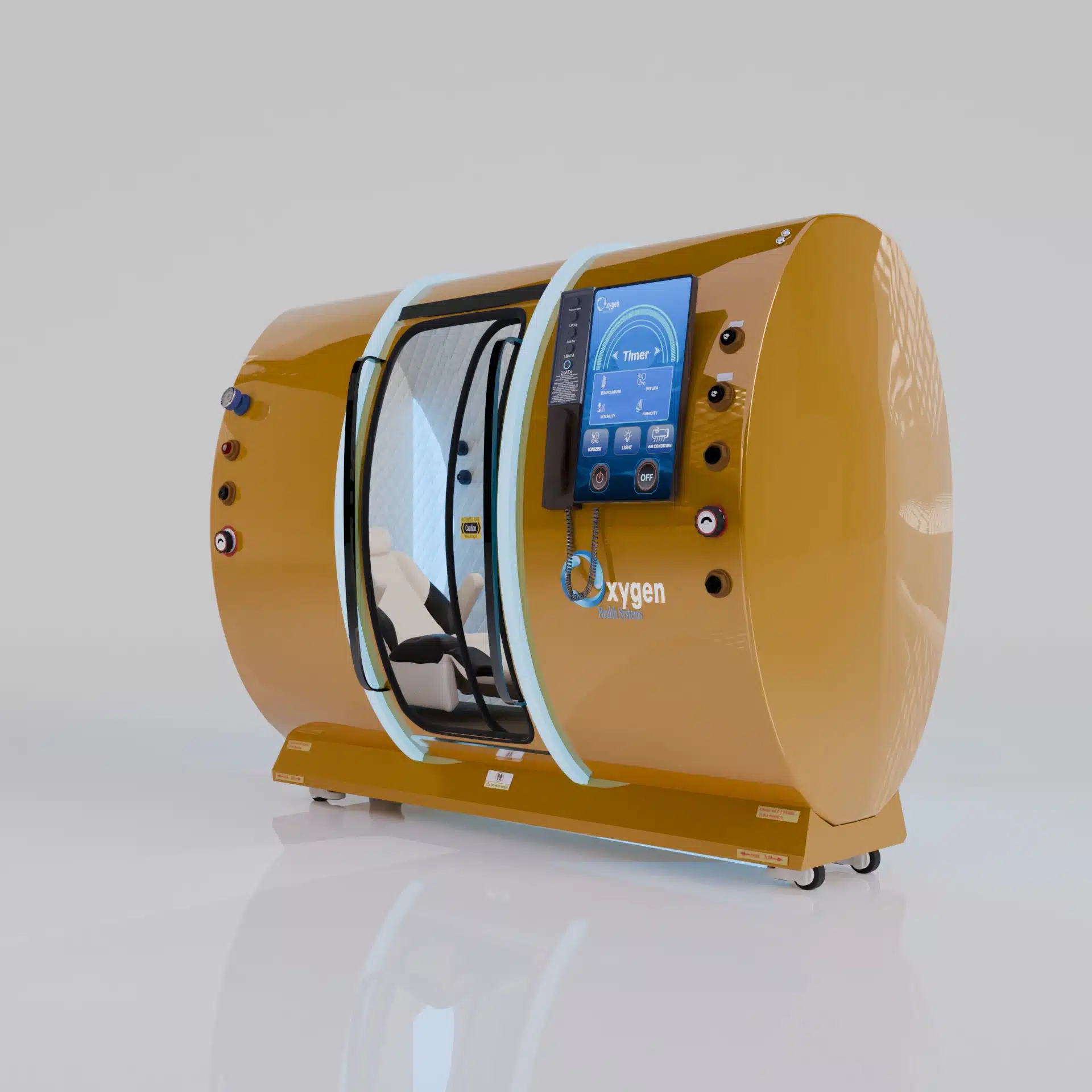

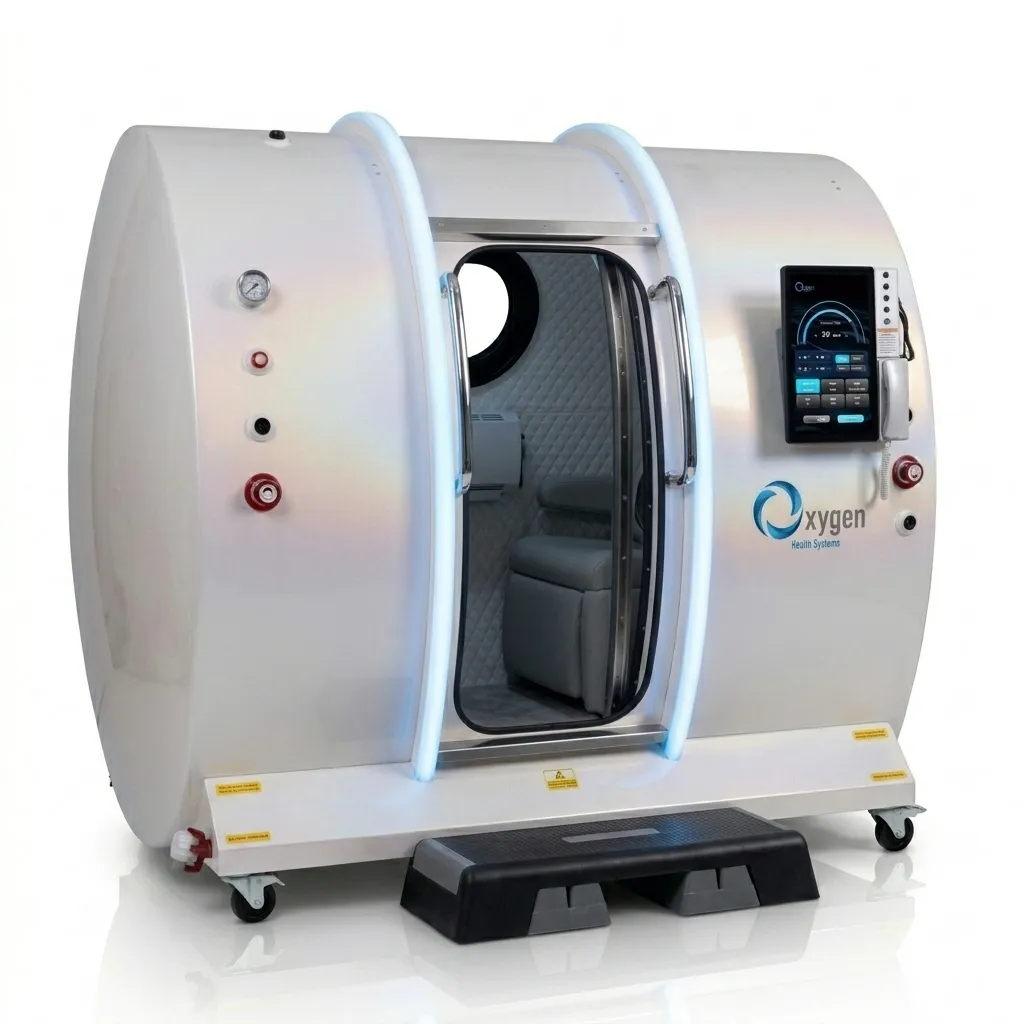

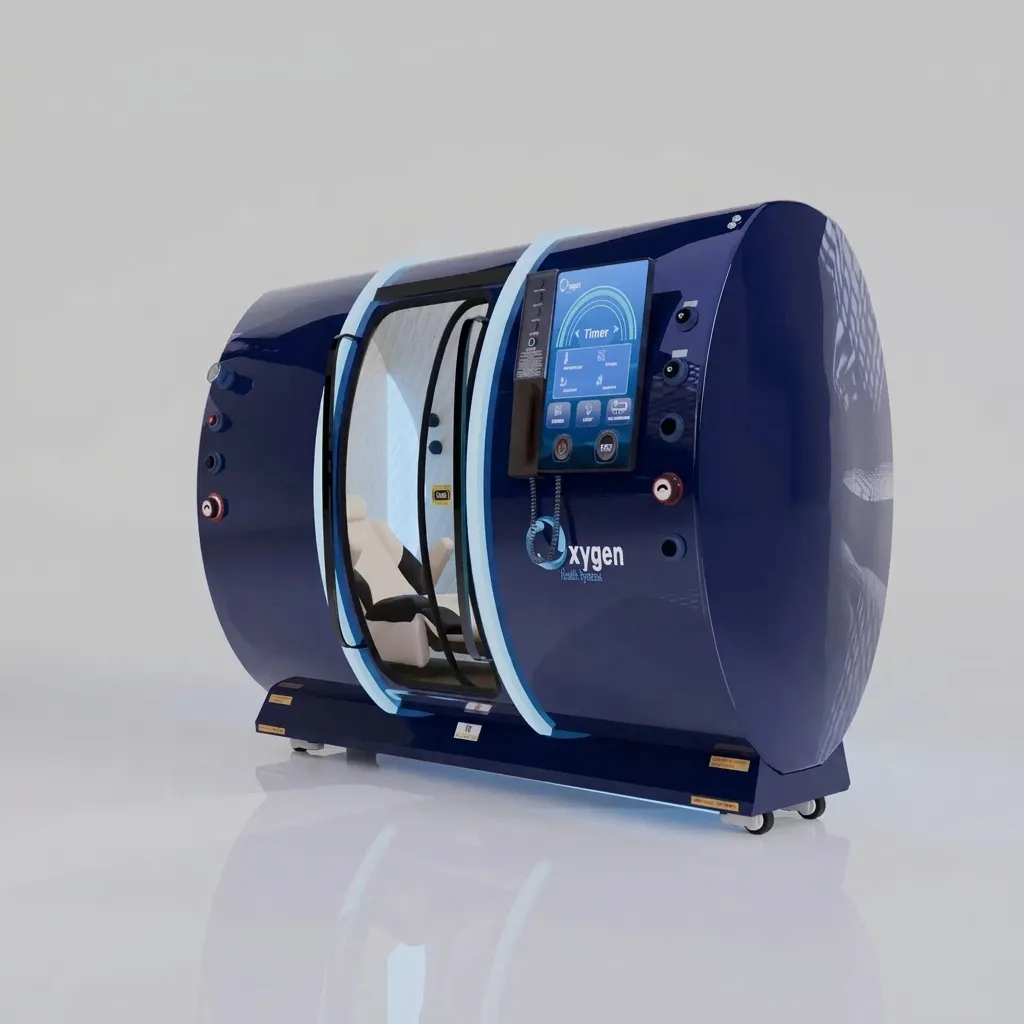

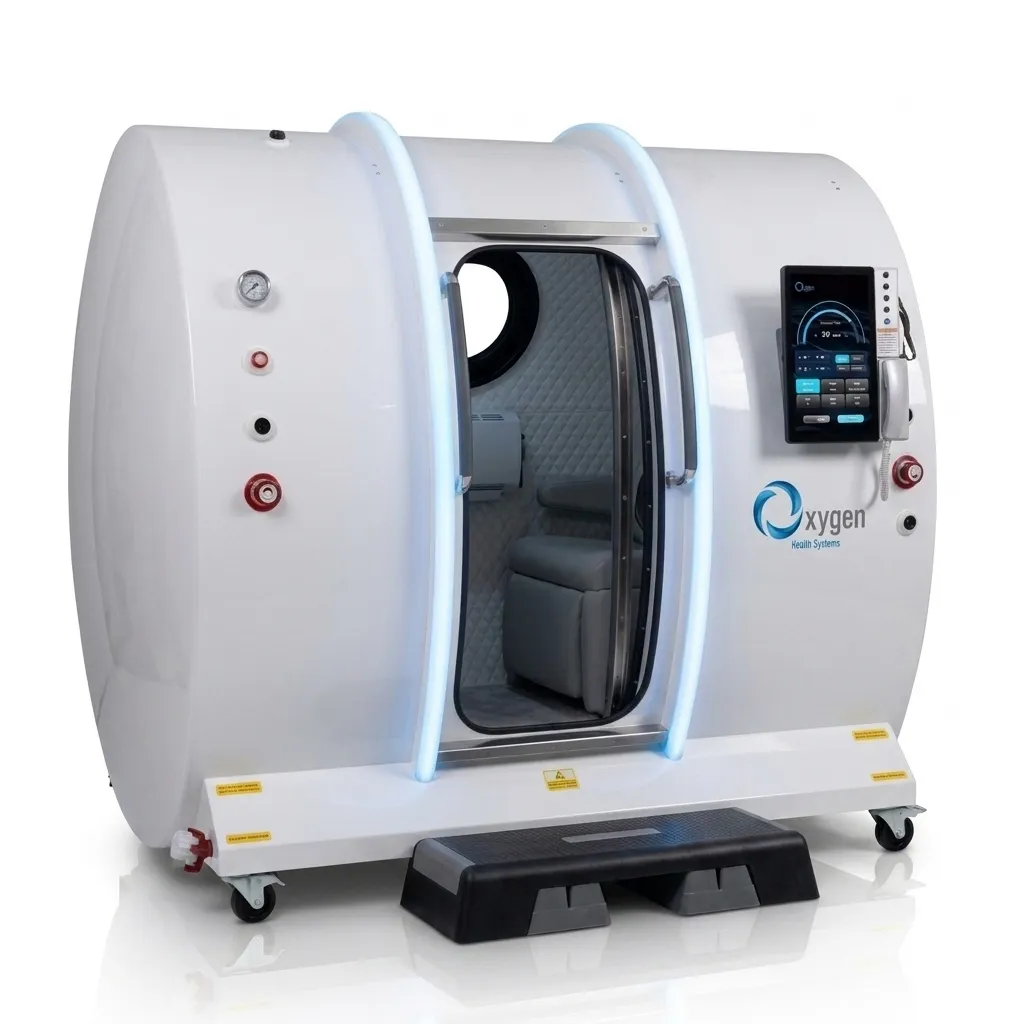

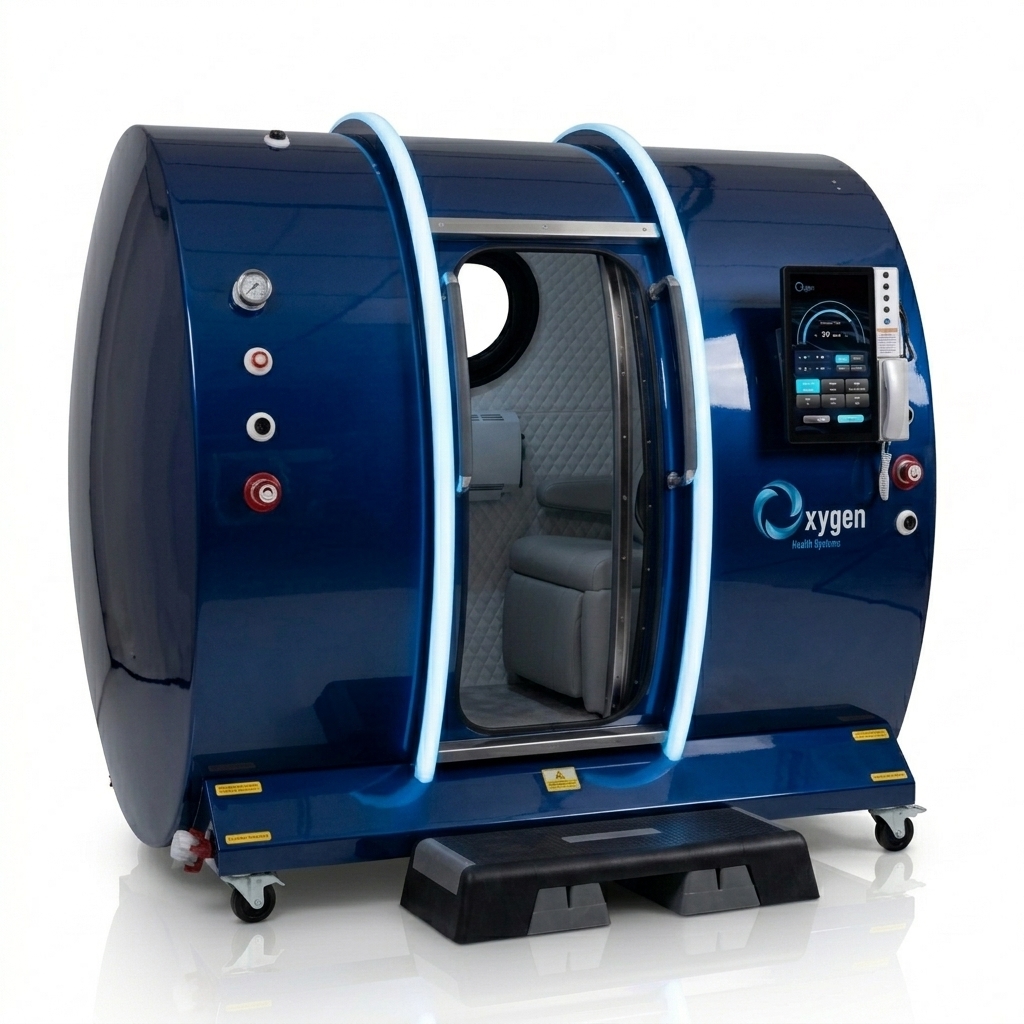

Executive XLS40 Hyperbaric Chamber 2.0 ATA

Multiplace Oxygen Therapy | 40″D × 87″L

☎ Call Now: +1 (630) 812-7865

Multiplace Hard Shell Design

Two people can sit together for a session in the Executive XLS40, a hard shell hyperbaric chamber built for clinical, wellness center, and home use at pressures up to 2.0 ATA (15 PSI). Selectable pressure settings, dual oxygen generation, and redundant safety systems support supervised or unsupervised sessions depending on the setting. Key highlights:

• Selectable pressures up to 2.0 ATA (15 PSI)
• Seats 1 to 2 people, with designer chairs or an optional 12V smart TV for single-occupant sessions
• Dual 10 LPM oxygen generators (20 LPM total, 95 percent purity or higher), no oxygen tanks required
• Redundant compressors, oxygen generators, and pressure relief valves

Capacity and Comfort

• Seats 1 to 2 people with designer chairs, or a single chair with a 12V smart TV
• Optional air conditioning for temperature and humidity control
• Dimmable interior lighting with an optional starlight ceiling
• Two large viewing windows, sized to reduce a claustrophobic feel

Controls and Monitoring

• Selectable pressures: 1.3, 1.6, 1.8, and 2.0 ATA, adjustable from inside or outside the chamber
• Interior and exterior digital displays for pressure, temperature, humidity, and oxygen level
• Programmable session timer with digital touchscreen and manual controls
• Two-way communication intercom between occupant and attendant

Add-Ons

• Negative ion generator for additional air quality control during sessions
• Expansion ports for future upgrades or secondary devices

Hard shell construction is what allows the Executive XLS40 to run at pressures up to 2.0 ATA, above what most soft-shell portable chambers are rated for. The rigid shell holds its shape under pressure rather than relying on air pressure alone, which is why multiplace hard shell units like this one are the standard choice for clinics and wellness centers running back-to-back sessions. Two large viewing windows are built into the shell for natural light and a less enclosed feel during longer sessions, and the interior is finished with designer chairs rather than a bench seat, since the chamber is meant to seat two people comfortably rather than one person lying down. At 1520 lbs and 40 inches in diameter by 87 inches in length, this is a semi-permanent installation rather than a chamber meant to be moved room to room, which is worth planning for before delivery.

• Redundant compressors, oxygen generators, and pressure relief valves
• Timer-controlled automatic depressurization for sessions up to 120 minutes
• Emergency depressurization available in under 2 minutes
• Grounding system to reduce static buildup during sessions
• Standard 18-minute pressurization, with adjustable controls for a slower ascent
• Operates below 60 dB for a quieter interior

Before use: hyperbaric chambers are not recommended for anyone with certain lung conditions, an untreated pneumothorax, a pacemaker or other implanted device not rated for pressure changes, or during pregnancy, without a physician’s guidance. Standard hyperbaric precautions around oxygen toxicity, fire risk, and barotrauma apply. Talk with a doctor before starting sessions if any of these apply.

• Clinics and hospitals: built for continuous operation across high patient volume
• Home use: straightforward setup, with electricity as the main running cost
• Wellness centers: multiplace capacity supports side-by-side client sessions

Plan for a dedicated space that comfortably fits the 40 inch by 87 inch chamber plus clearance for entry and exit on both sides. Standard 110V to 120V power is sufficient for most US installations; 220V configurations are available for international orders. No plumbed oxygen line or oxygen tank storage is required, since the chamber generates its own supply. Hyperbaric Pro’s installation team can advise on room layout, power requirements, and delivery logistics before the chamber ships.

Can two people use the Executive XLS40 at the same time?
Yes. The chamber is built as a multiplace unit, seating up to two people per session with designer chairs.

What pressure levels does it support?
Pressure is selectable at 1.3, 1.6, 1.8, or 2.0 ATA (15 PSI maximum), adjustable from inside or outside the chamber.

Does it need an external oxygen tank?
No. Dual 10 LPM oxygen generators supply oxygen at 95 percent purity or higher, so no tanks are required.

What power does it run on?
Standard 110V to 120V household power. A 220V configuration is available for international orders.

How is this different from a soft-shell portable chamber?
Hard shell construction supports higher pressure (up to 2.0 ATA here) and two-person, side-by-side seating, where most soft-shell chambers are single-occupant and rated for lower pressure. It is also a semi-permanent installation rather than a chamber that folds down for storage.

• 3-Year Warranty: covers the chamber and its components
• International orders: custom voltage and plug configurations available
• Financing: options available, see financing details

This chamber is a Class II wellness device intended for general wellness use and is not FDA-cleared to diagnose, treat, cure, or prevent any disease. Hyperbaric oxygen therapy research is ongoing; consult a physician before starting sessions, particularly if you have a lung condition, a pacemaker or other implanted device, or are pregnant.
